- Steckplatz

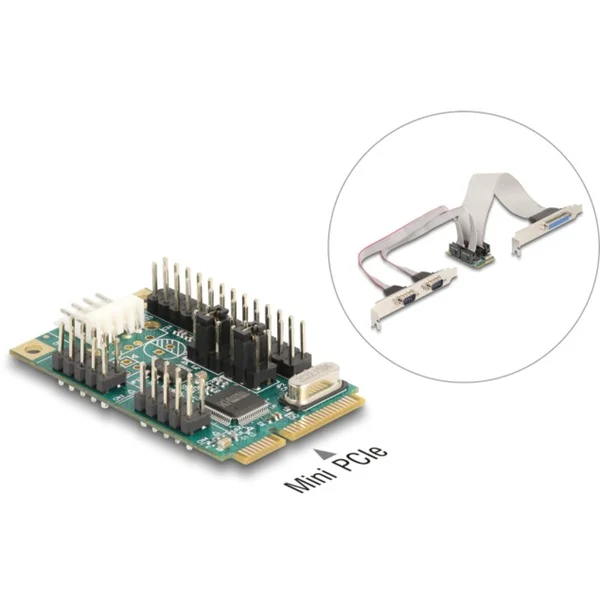

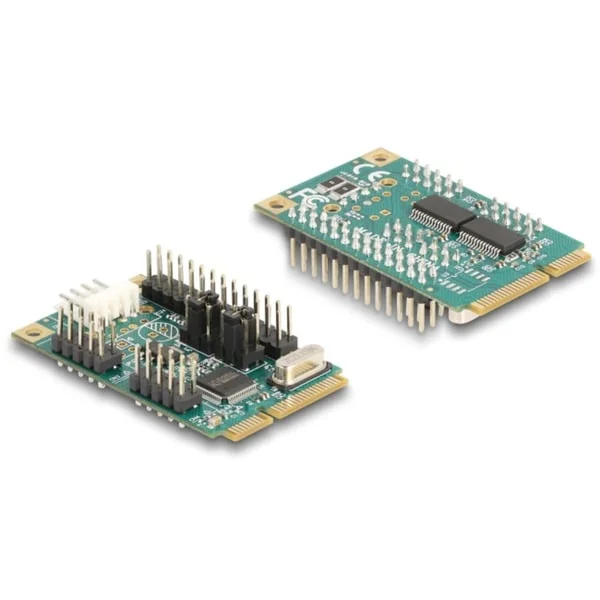

- Mini-PCIe Version 1,2
- Chip
- WCH382L
- Anschlüsse / extern
- 1x 25-Pin
- Betriebssystem / Unterstützt
- Windows 10, Windows 11, Windows Server 2022
- Low Profile
- optional
- Feature
- intern: 2 x 10 Pin Pfostenstecker, 1 x 26 Pin Pfostenstecker, 1 x Floppy 4 Pin Stecker | Datentransferrate bis zu 460,8 Kbps, FIFO: 2 x 256 Byte, Datenbits: 5, 6, 7, 8, Stopbits: 1, 2, Paritätsbit: gerade, ungerade, keine, markiert, leer, Flusskontrolle: keine, Hardware RTS / CTS, SoftwareXON / XOFF, Signale: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V, Jumper zur Einstellung RI oder 5 V / 12 V am Pin 9, Elektrische Leistung pro Port: max. 20 Watt (5 V / 4 A), Elektrische Leistung pro Port: max. 48 Watt (12 V / 4 A), Parallel Spezifikation: Datentransferrate bis zu 1 Mbps, SPP, PS2, EPP, ECP kompatibel zu IEEE 1284, Kabellänge inkl. Anschlüsse: ca. 25 cm
- Zubehör / vorhanden

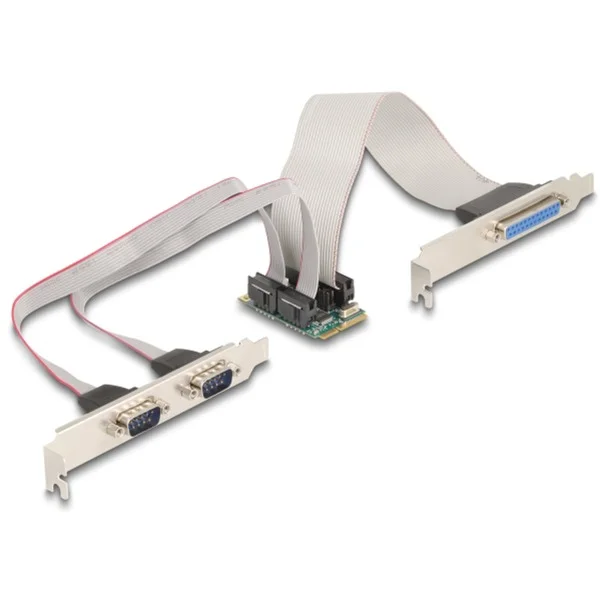

- 2 serielle Anschlusskabel, 1 paralleles Anschlusskabel, 2 x Standard Blende, 3 x Low Profile Blende, Bedienungsanleitung
- Abmessungen
- Breite: 51 mm x Höhe: 30 mm x Tiefe/Länge: 10 mm
